听说辰哥还不会调试RocketMQ源码?今晚不睡也得让辰哥学会

发表于 | 分类于

1. 获取RocketMQ源码

RocketMQ原先是阿里巴巴内部使用的消息中间件,于2017年提交到Apache基金会成为Apache基金会的顶级开源项目,GitHub代码库链接:https://github.com/apache/rocketmq.git.在Github网站上搜索RocketMQ,如图所示.

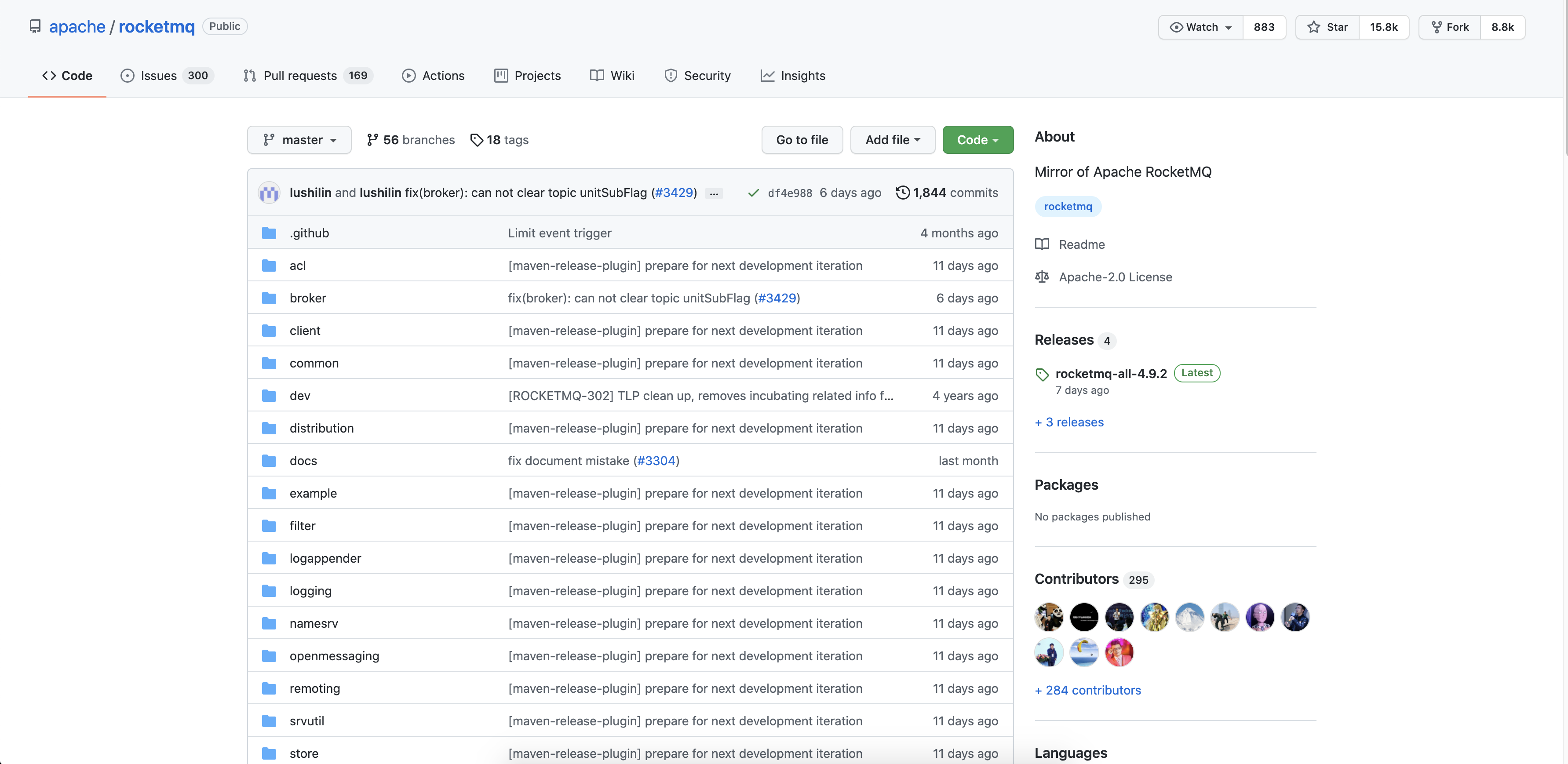

截屏2021-11-02 21.56.03

克隆源码,命令如下

git clone https://github.com/apache/rocketmq.git

克隆完成后,在IntelliJ IDEA打开

导入成功后,效果如图所示

截屏2021-11-02 22.52.00

执行maven clean install 进行编译和下载依赖

下载完成后,控制台提示BUILD SUCCESS信息

2. 在IntelliJ IDEA调试RocketMQ源码

(1) 启动NameServer
  • 展开namesrc模块,右键NamesrvStartup.java,移动到Debug As,选中Debug ‘NamesrvStartup.java.main()’
  • 点击Environment variables后面的按钮,弹出Environment variables对话框
  • 点击+号,在Name输入框中输入ROCKETMQ_HOME,Value输入源码的保存路径,点击OK即可
  • 在RocketMQ运行主目录创建conf、logs、store三个文件夹
  • 在RocketMQ distribution部署目录中将broker.conf、logback_broker.xml文件复制到conf目录中,logback_namesrv.xml文件,只需修改日志文件的目录,brocker.conf文件目录内容代码如下所示
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
#nameServer地址，分号分割
namesrvAddr=127.0.0.1:9876
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH

# 存储路径
storePathRootDir=/rocketmq/store
# commitLog 存储路径
storePathCommitLog=/rocketmq/store/commitLog
# 消费队列存储路径
storePathConsumeQueue=/rocketmq/store/consumequeue
# 消息索引存储路径
storePathIndex=/rocketmq/store/index
# checkpoint 文件存储路径
storeCheckpoint=/rocketmq/store/checkpoint
# abort 文件存储路径
abortFile=/rocketmq/store/abort
  • 在IntelliJ IDEA Debug中运行NamesrvStartup,并输出“The Name Server boot success.Serializetype=JSON”
(2) 启动Broker

  • 展开broker模块，右键BrokerStartup.java执行，会提示需要配置ROCKETMQ_HOME。在idea右上角选中Debug Configurations,

    在弹出的对话框中选择arguments选项，配置-c属性指定broker配置文件路径

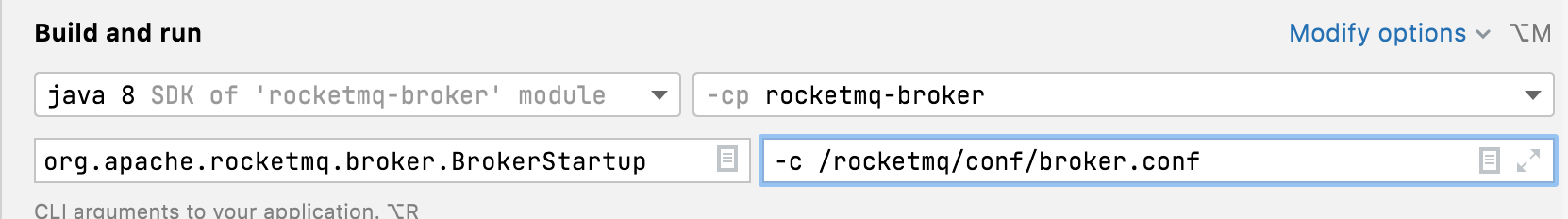

    截屏2021-11-03 00.31.54

  • 切换选项卡Environment，配置ROCKETMQ_HOME主目录和broker配置文件

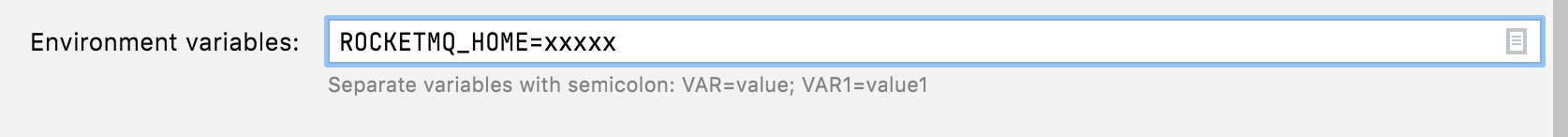

截屏2021-11-03 00.33.25

  • 以debug模式运行BrokerStartup.java，查看${ROCKETMQ_HOME}/logs/broker.log文件，未报错则表示启动成功
(3) 使用RocketMQ提供的实例验证消息发送与消息消费
  • 修改org.apache.rocketmq.example.quickstart.Producer示例程序，设置消息生产者NameServer地址
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
/*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.apache.rocketmq.example.quickstart;

import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.remoting.common.RemotingHelper;

/**
 * This class demonstrates how to send messages to brokers using provided {@link DefaultMQProducer}.
 */
public class Producer {
    public static void main(String[] args) throws MQClientException, InterruptedException {

        /*
         * Instantiate with a producer group name.
         */
        DefaultMQProducer producer = new DefaultMQProducer("please_rename_unique_group_name");

        producer.setNamesrvAddr("127.0.0.1:9876");

        /*
         * Specify name server addresses.
         * <p/>
         *
         * Alternatively, you may specify name server addresses via exporting environmental variable: NAMESRV_ADDR
         * <pre>
         * {@code
         * producer.setNamesrvAddr("name-server1-ip:9876;name-server2-ip:9876");
         * }
         * </pre>
         */

        /*
         * Launch the instance.
         */
        producer.start();

        for (int i = 0; i < 1000; i++) {
            try {

                /*
                 * Create a message instance, specifying topic, tag and message body.
                 */
                Message msg = new Message("TopicTest" /* Topic */,
                    "TagA" /* Tag */,
                    ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* Message body */
                );

                /*
                 * Call send message to deliver message to one of brokers.
                 */
                SendResult sendResult = producer.send(msg);
                /*
                 * There are different ways to send message, if you don't care about the send result,you can use this way
                 * {@code
                 * producer.sendOneway(msg);
                 * }
                 */

                /*
                 * if you want to get the send result in a synchronize way, you can use this send method
                 * {@code
                 * SendResult sendResult = producer.send(msg);
                 * System.out.printf("%s%n", sendResult);
                 * }
                 */

                /*
                 * if you want to get the send result in a asynchronize way, you can use this send method
                 * {@code
                 *
                 *  producer.send(msg, new SendCallback() {
                 *  @Override
                 *  public void onSuccess(SendResult sendResult) {
                 *      // do something
                 *  }
                 *
                 *  @Override
                 *  public void onException(Throwable e) {
                 *      // do something
                 *  }
                 *});
                 *
                 *}
                 */

                System.out.printf("%s%n", sendResult);
            } catch (Exception e) {
                e.printStackTrace();
                Thread.sleep(1000);
            }
        }

        /*
         * Shut down once the producer instance is not longer in use.
         */
        producer.shutdown();
    }
}
  • 运行示例程序，查看运行结果，如有输出sendStatus=SEND_OK则表示消息发送成功
  • 修改org.apache.rocketmq.example.quickstart.Consumer示例程序，设置消息消费者NameServer地址
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
/*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.apache.rocketmq.example.quickstart;

import java.util.List;
import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.common.consumer.ConsumeFromWhere;
import org.apache.rocketmq.common.message.MessageExt;

/**
 * This example shows how to subscribe and consume messages using providing {@link DefaultMQPushConsumer}.
 */
public class Consumer {

    public static void main(String[] args) throws InterruptedException, MQClientException {

        /*
         * Instantiate with specified consumer group name.
         */
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("please_rename_unique_group_name_4");
        consumer.setNamesrvAddr("127.0.0.1:9876");

        /*
         * Specify name server addresses.
         * <p/>
         *
         * Alternatively, you may specify name server addresses via exporting environmental variable: NAMESRV_ADDR
         * <pre>
         * {@code
         * consumer.setNamesrvAddr("name-server1-ip:9876;name-server2-ip:9876");
         * }
         * </pre>
         */

        /*
         * Specify where to start in case the specified consumer group is a brand new one.
         */
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);

        /*
         * Subscribe one more more topics to consume.
         */
        consumer.subscribe("TopicTest", "*");

        /*
         *  Register callback to execute on arrival of messages fetched from brokers.
         */
        consumer.registerMessageListener(new MessageListenerConcurrently() {

            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs,
                ConsumeConcurrentlyContext context) {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });

        /*
         *  Launch the consumer instance.
         */
        consumer.start();

        System.out.printf("Consumer Started.%n");
    }
}
  • 运行消费者程序

消息发送与消息消费都成功，则说明RocketMQ调试环境已成功搭建，可以通过Debug调试源码，探索RocketMQ的奥秘了。
